Cooking Solid Vanilla-tasting Stack-Overflows
Introduction:
Recently at Haboob, we decided to look into PDF convertors. Anything that converts various file formats to PDF files and vice versa is game. We stumbled across different frameworks and tools. One of the frameworks that we decided to look into is Solid Framework.
In our first blog post, we covered the basics of Solid Framework, harnessing and fuzzing. We also covered possible attack surfaces in both Acrobat Pro DC and Foxit Editor that can end up triggering Solid Framework vulnerabilities since both applications use the framework.
One of the interesting vulnerabilities that recently got fixed is a Stack Overflow vulnerability. It’s interesting enough that we were able to fully control the crash.
Buckle up, here we go..
The Vulnerability:
A ‘W’ array entry is responsible for defining the widths for individual CIDs in a PDF XRef object. It’s possible to trigger a Stack-based Buffer Overflow by an invalid CID width but the story has more into it.
The crash initially looked interesting enough for us to pursue:
The root-cause of the vulnerability was unclear and at first glance the vulnerability can be misleading. That address was not mapped to anything so, things like WinDBG’s “!heap” or “!address” won’t get you anywhere. To make things more intriguing, we kept getting the same crash each time we ran the testcase. We did not know where the value that kept getting dereferenced came from.

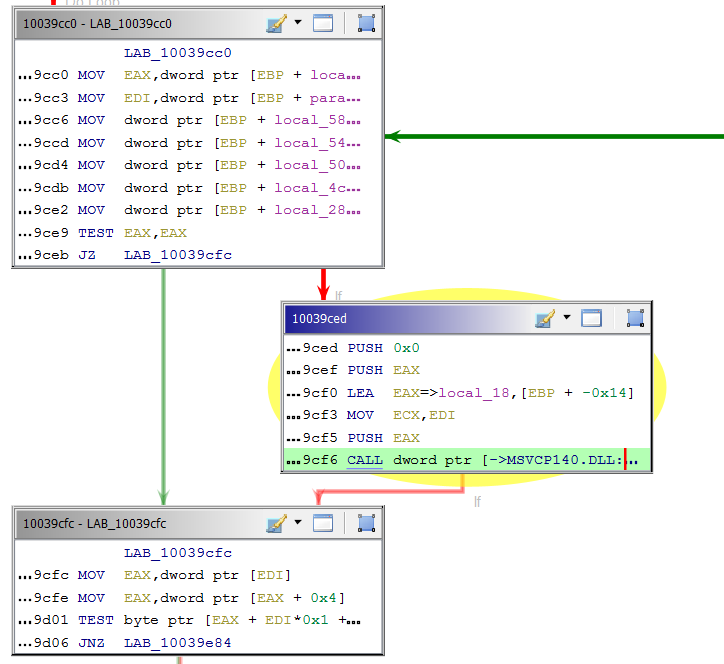

We had to do a lot back-tracing in order to understand the story behind the value that kept being dereferenced. During the back-tracing process, an interesting function call caught our attention. A function call in the SecurePdfSDK Library reads the object stream by calling the read function to extract the data and then copies it to a stack buffer.
The read function calls xsgetn which seemed to be getting the data from a controlled buffer with a controlled size:
Luckily, in that specific testcase the size that caused the crash was 0xffffffff, which made the crash visible. The following screenshot shows the call to the xsgetn function:
Later, a memcpy call is made to copy the data into a buffer on the stack. Looking at the destination buffer after the copy we noticed that the value (0x82828080) that kept being dereferenced was in the data.
So where did this value come from? Can it be controlled?
The Mangle:
After a bit (too much) of investigation, we finally figured out that the value came from a stream. The stream was zlib compressed. That said, the stream was decompressed then the decompressed data was copied.
Armed with that piece of information, we moved ahead and crafted our own stream, compressed it, embedded it, and ran the test case.
By setting a breakpoint on xsget, we were able to examine the arguments passed. Continuing the execution and examining the data copied after the memcpy call showed that our crafted stream data was copied to the stack buffer. Note that the size also can be controlled with the stream length and its data:
Moving ahead with execution, the result at last looked a lot more promising:
The Control:

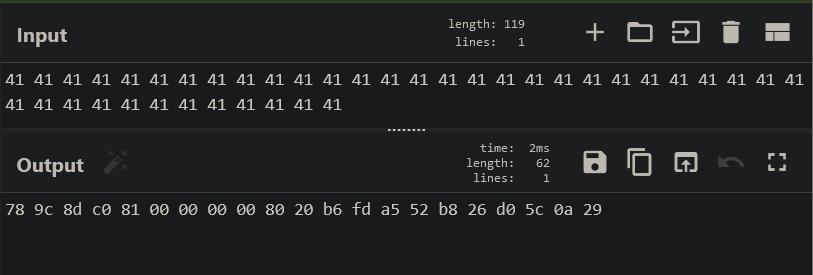

At this point we’re not done yet. We needed to figure out how to get this from its current state to controlling EIP. After going back and forth with minimizing the stream to be able to achieve something even better, it seemed that the easiest method was to overwrite 40 bytes which will eventually overwrite the return address on the stack. To do so, we used CyberChef to cook a recipe to compress our stream. The result looked like the following:

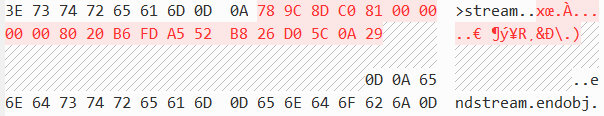

Now, all we needed is to edit the object stream of the corrupted XRef object. Doing so, the stream ended up close to this:
Note that shockingly stack cookies were not enabled, thus making our day way better.

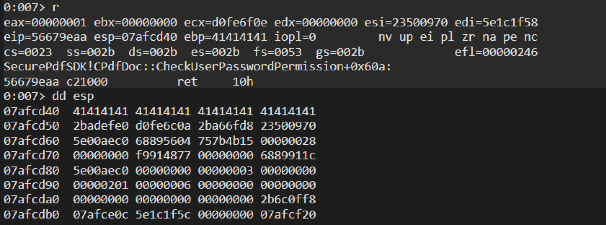

And finally, the great taste of EIP control:
Conclusion:
This bug was originally found in Solid Framework’s SDK but it did also hit in Foxit PhantomPDF since it uses the framework for conversion. Others also use the same framework (We’re looking at you Acrobat ;) ).
Foxit does not allow conversion from script (for example trigger the conversion from JavaScript) but that functionality exists in Acrobat. This vulnerability was fixed in Foxit’s May patch release.
Until then, thank you for following along.
